Magnum

Magnum Pathfinder 500

Magnum Pathfinder 500

$1,999.00 USD
$1,999.00 USD
Sale Sold out
Color

Pathfinder 500

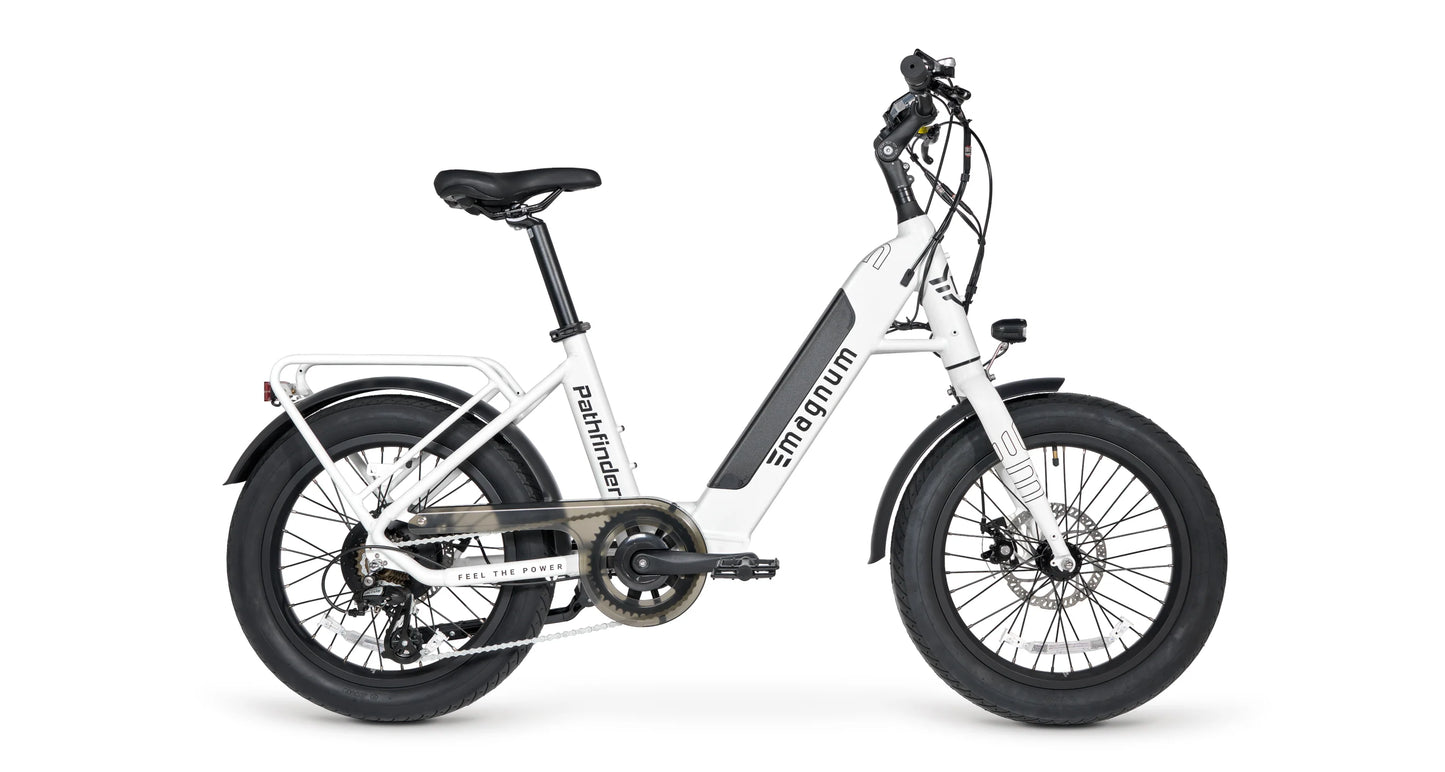

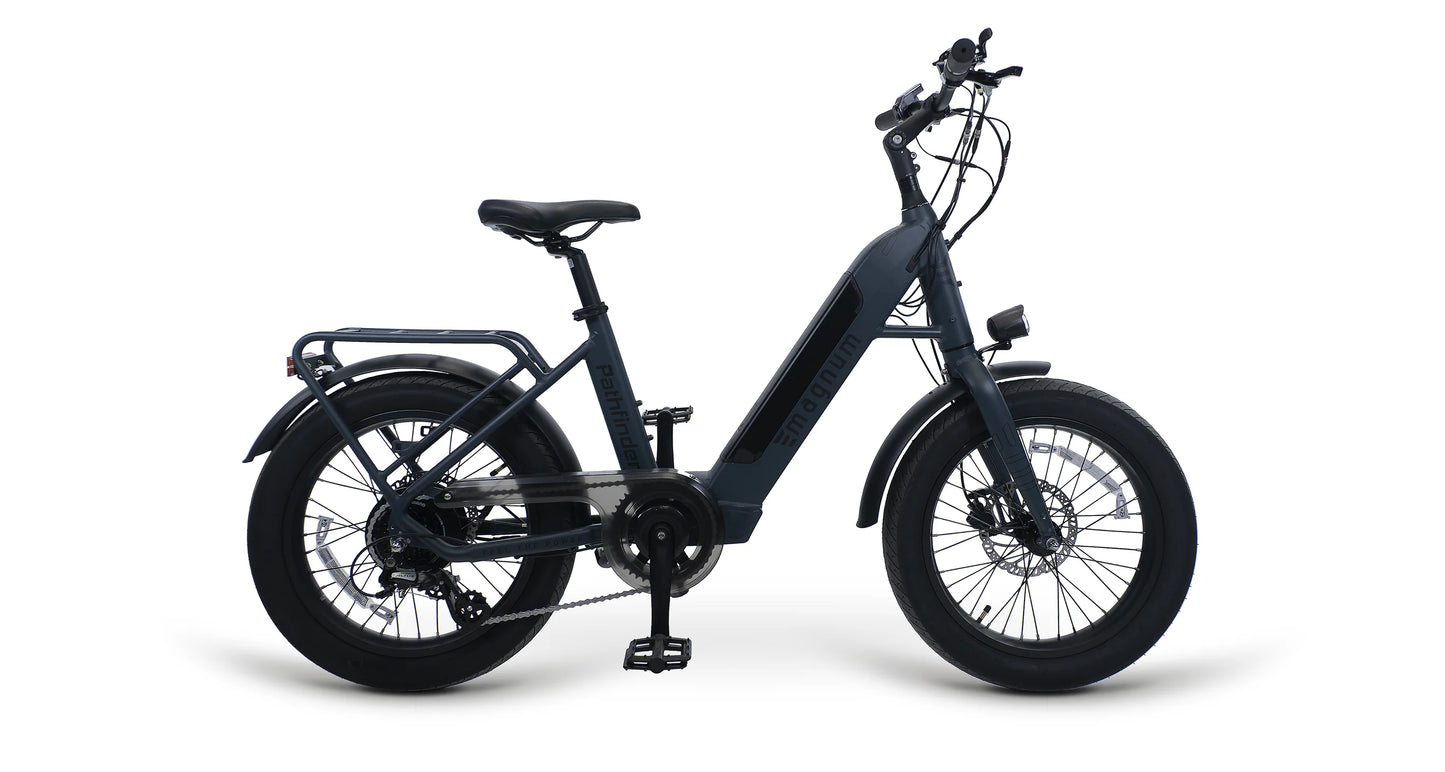

The Magnum Pathfinder 500

Work hard and play harder! The Magnum Pathfinder 500 is an e-bike that suits your active lifestyle. Whether it's used for recreation, exercise, commuting, or for the pure joy of power-assisted movement, the unisex Magnum Pathfinder 500 with its step-through frame will match your physique and your skills, and exceed your expectations.

Highlights

  • Category - Fat Tire
  • Class - Can be configured to a Class 1, 2, or 3 E-Bike.
  • Frame Type - Low-step
  • Seating - Relaxed
  • Perfect For - Paved / Light Trails / Recreation

    THE BATTERY.

    The heart of The Pathfinder 500, the long range 48V / 13Ah / 624Wh battery blends in smoothly with the frame for a sleek look. It powers up to 50 miles, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

    13Ah

    50 miles (80 Kilometers) Max Range

    6.5 Hours Charge Time

    RIDE SMOOTHER

    20″ x 3” Fat Tire Wheels

    The Pathfinder’s 3” fat tires absorb shock and heighten stability. They will improve handling over unexpected pot holes and uneven pavement, providing extra traction, control, and comfort.

    Component Overview



    Motor Brand - Vision In-House

    Motor Type - Rear Hub-Drive

    Motor Nominal Output - 500 Watts

    Motor Peak Output - ~650 Watts

    Battery Brand - LG Cells

    Battery Voltage - 48 Volts

    Battery Ah - 13Ah

    Battery Wh - 624Wh

    Battery Chemistry - Li-NMC

    Battery Charge Time (from empty) - 6.5 Hours

    Minimum Range - 25 Miles (40 Kilometers)

    Maximum Range - 50 miles (80 Kilometers)

    Display Type - Vision LCD Display

    Display Readouts - Battery Charge Level (Infographic with 5 Bars), Current Speed, Assist Level (0-5, Class 1; 0-6, Class 2 & 3), Odometer, Trip Distance, Average Speed, Max Speed

    Display Accessories

    Drive Mode - Cadence Sensing Pedal Assist, Twist Throttle, Walk Mode

    Top Speed - 25 mph with Pedal Assist, 20 mph with Throttle

    Lights - Integrated Front And Rear Lights




    Frame material - Aluminum Alloy

    Frame size - 15.75” (40 cm)

    Frame Type

    Fork Details - Rigid Aluminum Alloy

    Gearing details - Shimano 7-Speed

    Shifter Details - Shimano 7-Speed

    Crank - Aluminum Alloy, 44T, 165mm

    Pedals - Wide Plastic Platform with Reflectors

    Stem - Adjustable Aluminum Alloy

    Brakes - Hydraulic Disc Brakes

    Grips - Flat Rubber, Pressure Fit, Half-Grip on Right for Twist Throttle

    Saddle - Velo Gel Comfort

    Tire Brand - CST Big Boat 20 x 3.0

    Wheel size - 20"

    Fenders - Front and Rear Included

    Chain - KMC Z-Chain




    Seat Tube - 18.25” (46.5)

    Reach - 11.25” (28.5)

    Stand Over Height - 26.75” (68)

    Virtual Top Tube Length - 27.25” (69)

    Min Saddle Height - 24.5” (62)

    Max Saddle Height - 29.25” (74.5)

    Width - 28.25” (72)

    Wheelbase - 49.25” (125)

    Length - 76.5” (194)

    Total Weight - 65 lbs (29.5 kg)

    Battery Weight - 9 lbs. (4 kg)

    Recommended Minimum Rider Height - 5’4” (162.5 cm)

    Max Load Capacity - 330 lbs. (150 kg)




    Kickstand - Center-Mount, Left-Side, Adjustable

    Bell - No

    Charger - 56V / 2A

    Front Rack - Optional Front Rack (Not Included)

    Rear Rack - Included

    Fenders - Front and Rear Included

    Accessory Mounts - Heat Tube Mount, Fender Mount, Rear Rack Mount, Top Tube Mount
