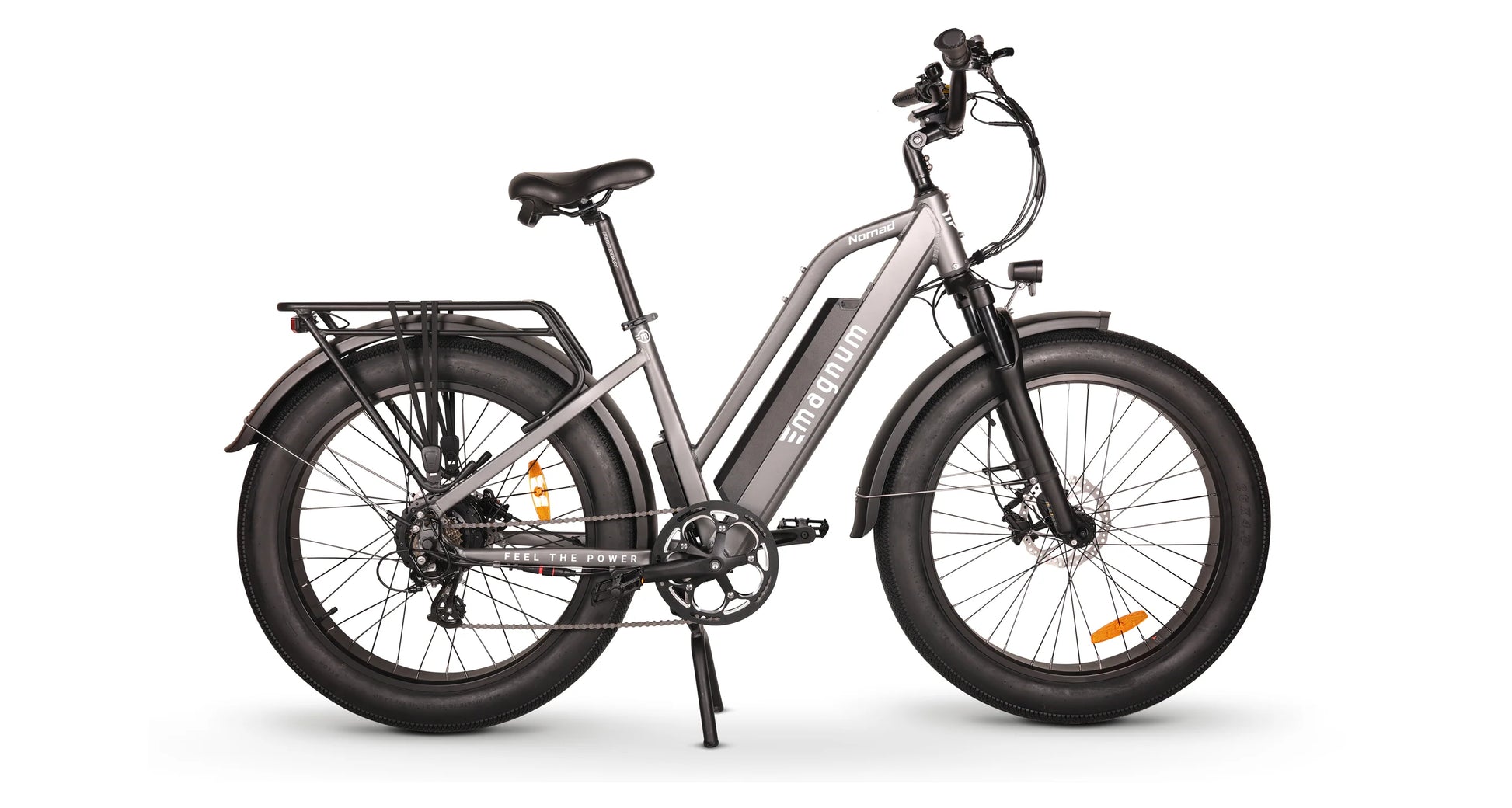

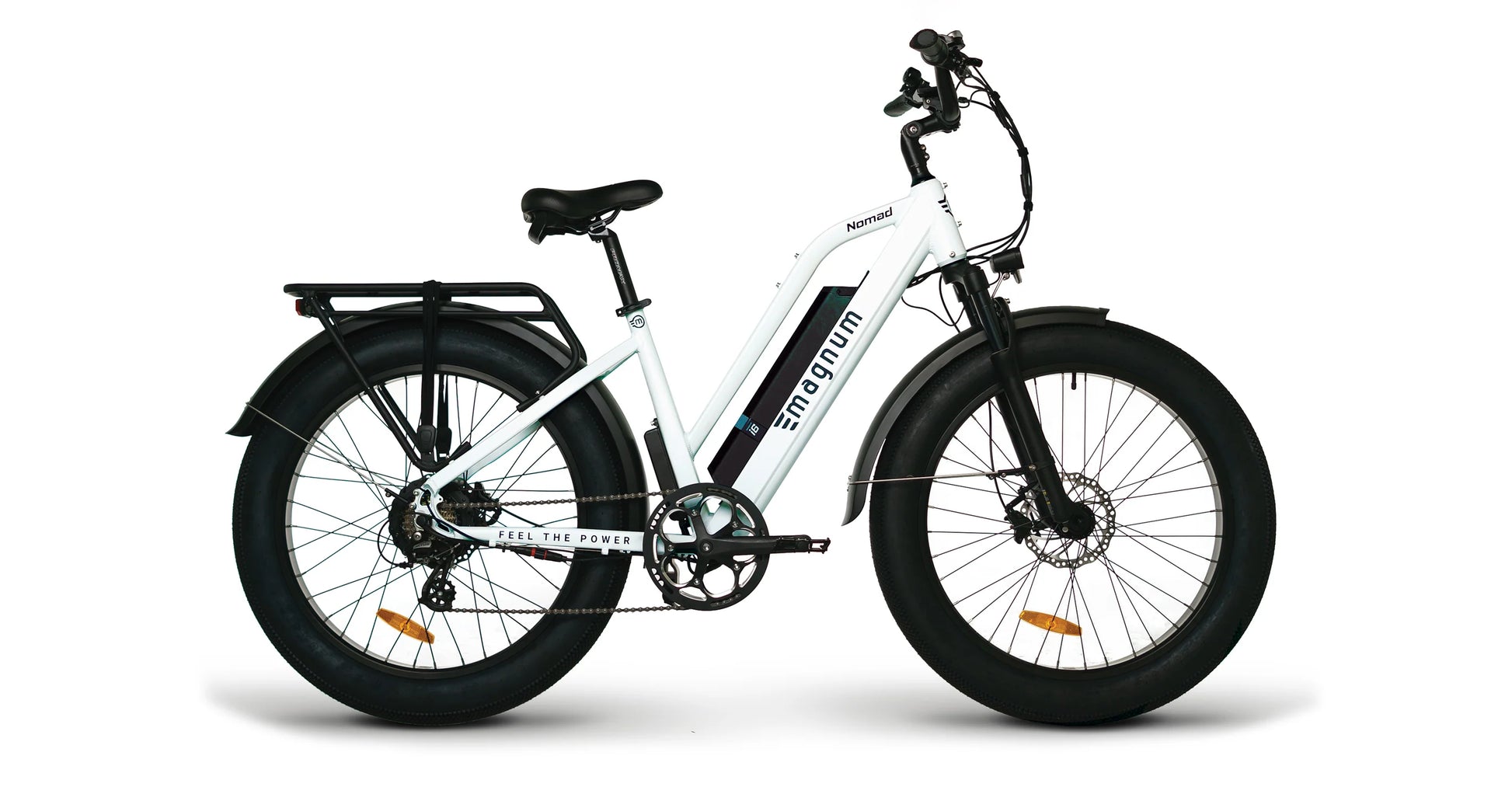

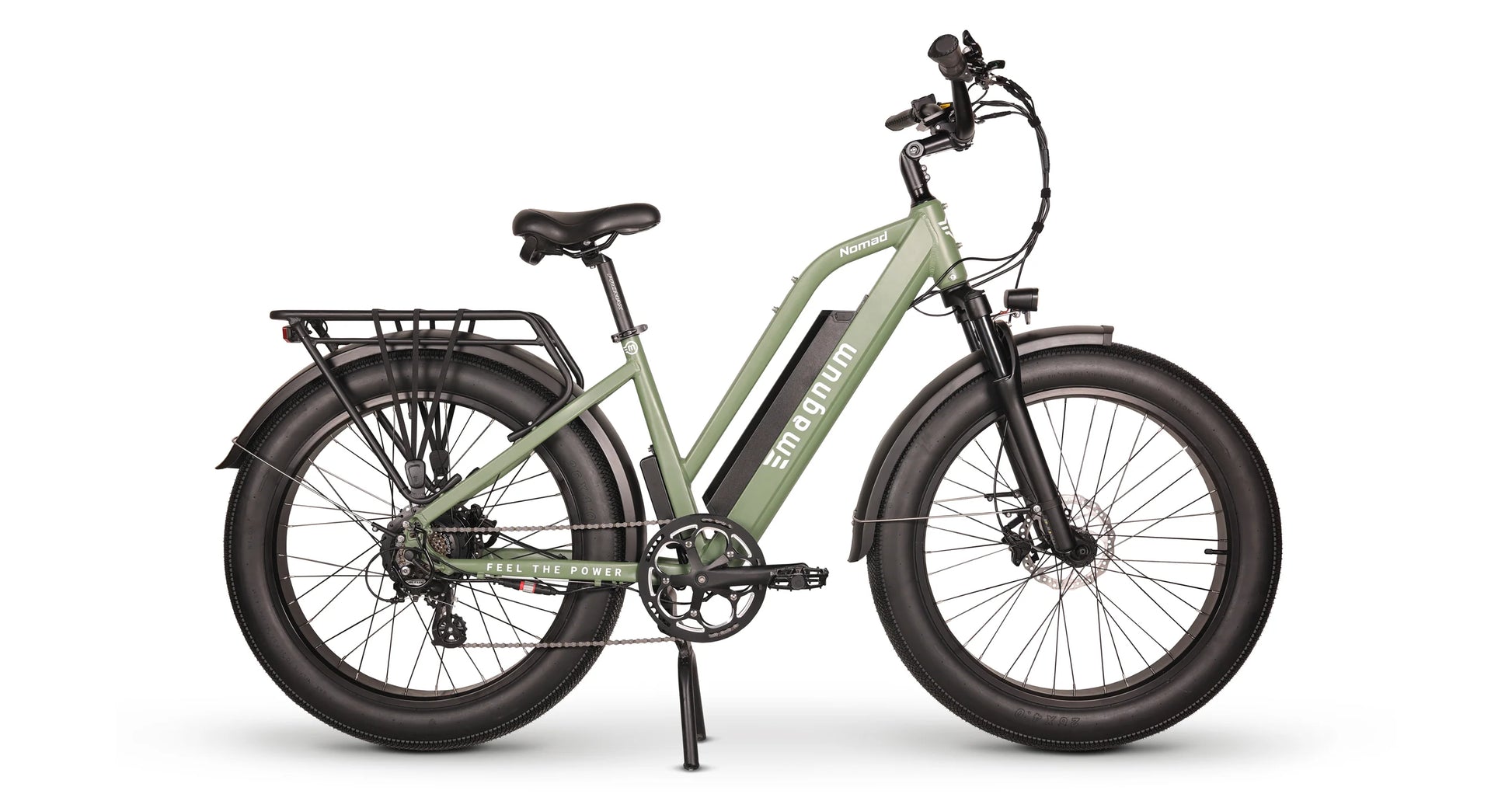

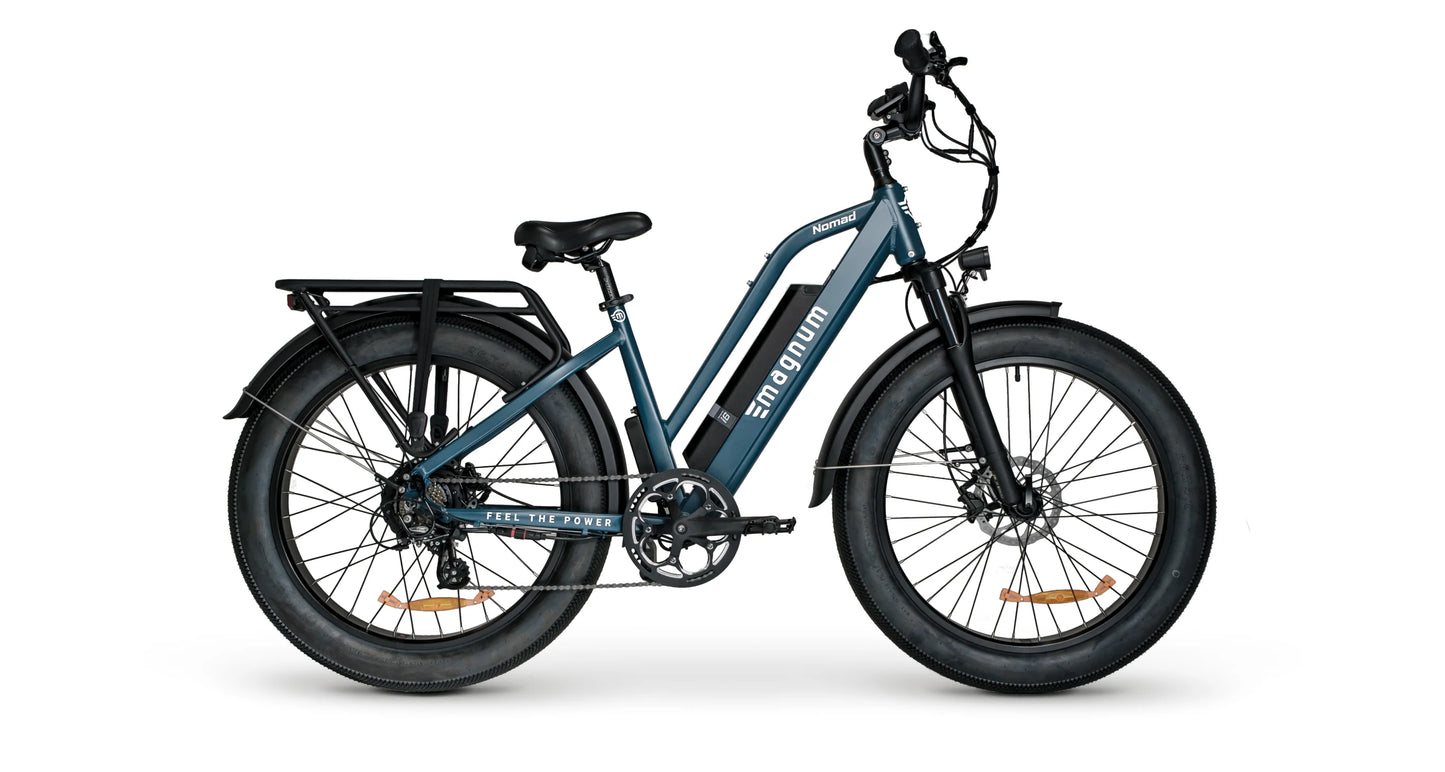

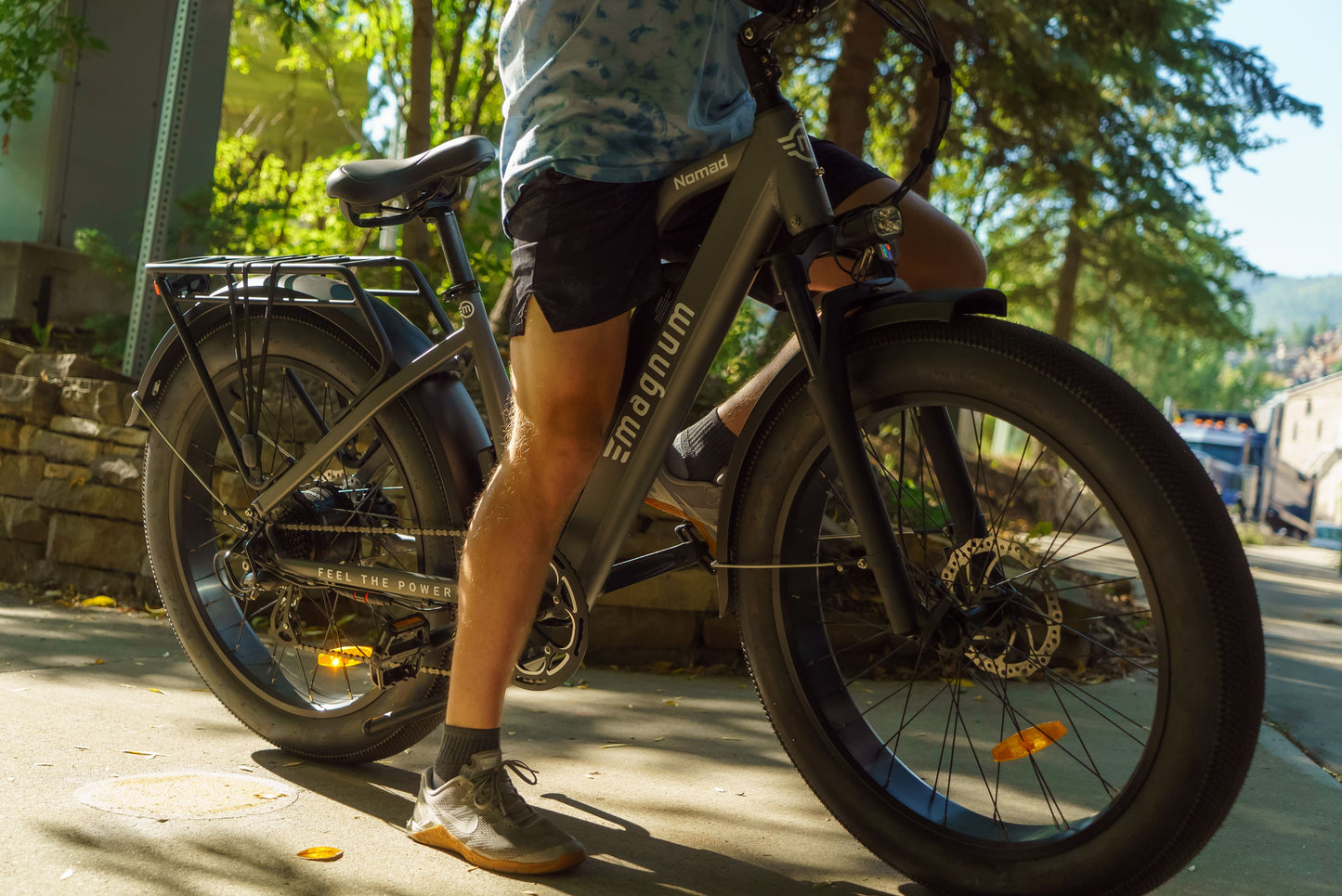

The Magnum Nomad

New to Magnum’s 2021-22 lineup, The Nomad is a powerful fat tire electric bike with a robust step-through frame that provides excellent stand over clearance for riders of varying heights. The Nomad is built for trail-riding and weekend adventures.

Highlights

  • Category - Fat Tire
  • Class - Can be configured to a Class 1, 2, or 3 E-Bike.
  • Frame Type - Mid-step
  • Seating - Active
  • Perfect For - Gravel / Paved / Snow

    THE BATTERY.

    The Nomad’s heart is a long range 48V / 17.5Ah / 840Wh Samsung battery that powers a 35 – 55 mile range depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

    17.5Ah

    55 miles (89 Kilometers) Max Range

    8.5 Hours Charge Time

    FEEL THE POWER

    750W Bafang Motor

    The 750 Watt Bafang rear hub motor provides power that will not fail you whenever and however you choose to use it. Specs include 1000 Watts of maximal output, 6 levels of pedal assist , and speeds up to 28mph+.

    Component Overview



    Motor Brand - Bafang

    Motor Type - Rear Hub-Drive

    Motor Nominal Output - 750 Watts

    Motor Peak Output - 1000 Watts

    Battery Brand - Samsung Cells

    Battery Voltage - 48 Volts

    Battery Ah - 17.5Ah

    Battery Wh - 840Wh

    Battery Chemistry - Li-NMC

    Battery Charge Time (from empty) - 8.5 Hours

    Minimum Range - 35 Miles (56 Kilometers)

    Maximum Range - 55 miles (89 Kilometers)

    Display Type - Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD

    Display Readouts - Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

    Display Accessories

    Drive Mode - Cadence Sensing Pedal Assist, Twist Throttle, Walk Mode

    Top Speed - Up to 28 mph with Pedal Assist, 20 mph with Throttle

    Lights - Front light controlled from the display. Rear light brake activated.





    Frame material - Aluminum Alloy

    Frame size - 18” (46 cm)

    Frame Type

    Fork Details - Suspension Fork with Lockout and Preload Adjust

    Gearing details - Shimano 7-Speed

    Shifter Details - Shimano 7-Speed

    Crank - Aluminum Alloy, 52T, 170mm

    Pedals - Wellgo

    Stem - Promax Adjustable

    Brakes - Logan Hydraulic Disc Brakes

    Grips - Black Faux Leather, Stitched

    Saddle - Comfort Hybrid, Integrated Lift Handle

    Tire Brand - 26 x 4.0

    Wheel size - 26”

    Fenders - Front and Rear Included

    Chain - KMC Z-Chain




    Seat Tube - 18” (46.5 cm)

    Reach - 15” (38 cm)

    Stand Over Height - 29.25” (74 cm)

    Virtual Top Tube Length - 23.5” (60 cm)

    Min Saddle Height - 22” (56 cm)

    Max Saddle Height - 28.5” (72.5 cm)

    Width - 28” (71 cm)

    Wheelbase - 46” (117 cm)

    Length - 75” (190 cm)

    Total Weight - 73.5 lbs (33 kg)

    Battery Weight - 10 lbs (4.5 kg)

    Recommended Minimum Rider Height - 5’5”

    Max Load Capacity - 330 lbs. (150 kg)




    Kickstand - Includes Center-Mount Aluminum Alloy Double Leg Kickstand

    Bell - Includes Bell

    Charger - Includes Charger 2 Amp 54.6 Volt

    Front Rack - Optional Front Rack (Not Included)

    Rear Rack - Includes Rear Rack

    Fenders - Includes Front and Rear Fenders

    Accessory Mounts - Includes Built-In Head Tube and Top Tube Accessory Mounts
