Magnum Peak T5

Magnum Peak T5

$2,699.00 USD
$2,699.00 USD
Sale Sold out
Color

Peak T5

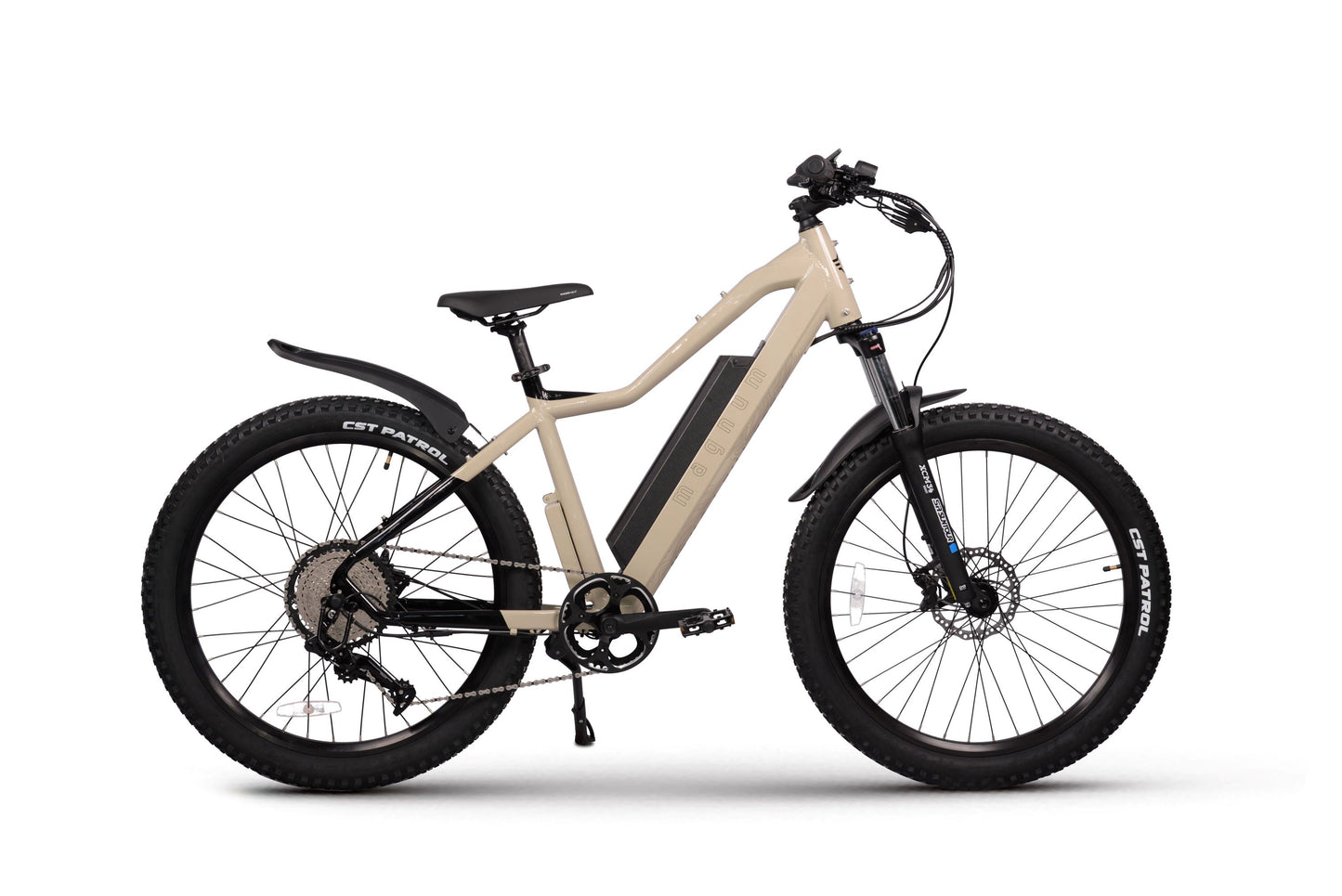

The Magnum Peak T5

The Peak T5 begins where the road ends! It has a torque pedal assist sensor that combines power from the rider and the motor for the ultimate in smoothness and control. A wide range drive train and a robust power system make the Peak T5 an ideal choice for trail riding.

Highlights

  • Category - Mountain
  • Class - Can be configured to a Class 1, 2, or 3 E-Bike.
  • Frame Type - High-step, MTB Cross-Country
  • Seating - Active
  • Perfect For - Gravel / Trails / Off-road

    THE BATTERY.

    Long-range (up to 50 miles) battery for the freedom and power to tackle longer rides

    15Ah

    50 miles (80 Kilometers) Max Range

    7.5 Hours Charge Time

    TORQUE-SENSING PEDAL ASSIST

    Amplify your effort.

    The torque-sensing pedal assist feature adds just the right amount of power from the motor to amplify your effort. It feels just like riding a regular bicycle, but with greater ease and comfort.

    Component Overview



    Motor Brand - Bafang

    Motor Type - Rear Hub-Drive

    Motor Nominal Output - 500 Watts

    Motor Peak Output - 750 Watts

    Battery Brand - Samsung Cells

    Battery Voltage - 48 Volts

    Battery Ah - 15Ah

    Battery Wh - 720Wh

    Battery Chemistry - Li-NMC

    Battery Charge Time (from empty) - 7.5 Hours

    Minimum Range - 30 Miles (48 Kilometers)

    Maximum Range - 50 miles (80 Kilometers)

    Display Type - Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD

    Display Readouts - Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

    Display Accessories

    Drive Mode - Torque Sensor Pedal Assist, Trigger Throttle, Walk Mode

    Top Speed - 25 mph with Pedal Assist, 20 mph with Throttle

    Lights - Front light controlled from the display. Rear light brake activated. Front Light: 40 lux, Rear Light: 20 lux (Rear light not included)




    Frame material - Aluminum Alloy

    Frame size - 19” (48 cm)

    Frame Type

    Fork Details - XCM34-Boost

    Gearing details - A11-X 11-Speed

    Shifter Details - A11-X 11-Speed

    Crank - Aluminum Alloy, 42T, 170mm

    Pedals - Wellgo

    Stem - Magnum 60mm

    Brakes - Logan Hydraulic Disc Brakes

    Grips - Black

    Saddle - Selle Royal Essenza+

    Tire Brand - CST Patrol 27.5 x 2.8

    Wheel size - 27.5”

    Fenders - Front and Rear Included

    Chain - KMC 11-Speed




    Seat Tube - 19” (48 cm)

    Reach - 14.5” (37 cm)

    Stand Over Height - 31” (78.5 cm)

    Virtual Top Tube Length - 23.25” (59 cm)

    Min Saddle Height - 22” (56 cm)

    Max Saddle Height - 31” (78.5 cm)

    Width - 28.75” (73 cm)

    Wheelbase - 45.75” (116 cm)

    Length - 74” (188 cm)

    Total Weight - 60 lbs (27.25 kg)

    Battery Weight - 9 lbs (4.1 kg)

    Recommended Minimum Rider Height - 5’6”

    Max Load Capacity - 330 lbs. (150 kg)




    Kickstand - Center-Mounted Single Side Kickstand

    Bell - N/A

    Charger - 48 V / 2 A

    Front Rack - Optional Front Rack (Not Included)

    Rear Rack - Optional (not included)

    Fenders - Front and Rear Included

    Accessory Mounts - Top Tube Mounts, Head Tube Mounts, Rear Rack Mounts
